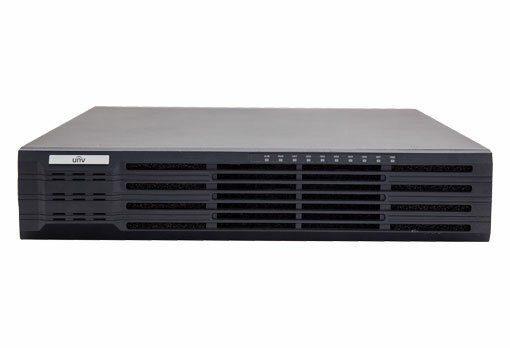

UNIVIEW PRIME 32 CHANNELS NVR – 8x SATA

Model: Uniview NVR308-32R-X

Features

• Support Ultra 265/H.265/H.264 video formats
• 32/64-channel input
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support 2-ch HDMI, 1-ch VGA, 1-ch CVBS, HDMI2 at up to 4K(3840×2160) resolution
• HDMI1/VGA and HDMI2 independent outputs provided
• Up to 12 Megapixels resolution recording
• Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
• 8 SATA HDDs, up to 10TB for each HDD
• Various fisheye dewarping modes for live view and playback for both web interface and GUI
• Support N+1 Hot spare
• Support for 12V Power output
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Specifications

Video/Audio Input

• IP Video Input: 32-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 320Mbps
• Outgoing Bandwidth: 320Mbps
• Remote Users: 128
• Protocols: SNMP,P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output:
  • HDMI1/VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
  • HDMI2: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz
• CVBS Output: 1-ch, BNC
• Recording Resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Synchronous Playback: 16-ch
• Corridor Mode Screen: 3/4/5/7/9/10/12/16/32

Decoding

• Decoding format: Ultra 265, H.265, H.264
• Live view/ Playback: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1

Hard Disk

• SATA: 8 SATA interfaces
• Capacity: Up to 10TB for each HDD
• eSATA: 1 eSATA interface

Smart

• VCA Detection: Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
• VCA Search: Face search, Behavior search
• Statistical Analysis: People counting

Disk Array

• Array Type: RAID 0, 1, 5, 6, 10

External Interface

• Network Interface: 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
• Serial Interface: 1 x RS232, 1 x RS485
• USB Interface: Rear panel: 2 x USB2.0, 1 x USB3.0
• Alarm In: 16-ch
• Alarm Out: 4-ch

General

• Power Supply: 100 ~ 240 VAC
• Power Consumption: ≤ 20 W( without HDD )
• Working Environment: -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
• Dimensions(W×D×H): 442mm ×531mm ×86mm (17.4″ × 20.9″×3.4″)
• Weight ( without HDD ): ≤ 5.13 Kg (11.31 lb )
