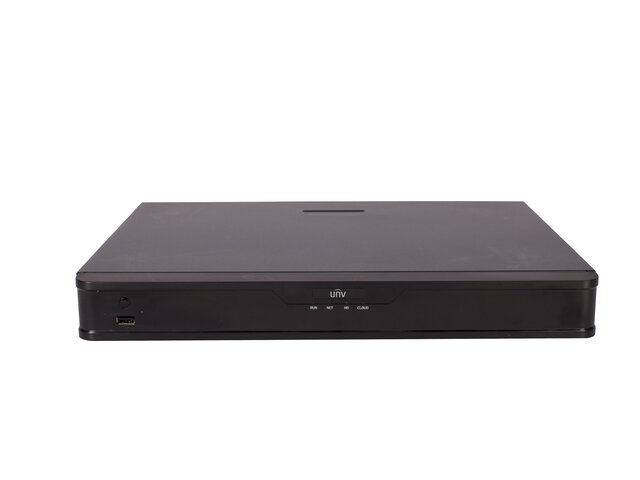

UNIVIEW PRIME 16 CHANNELS NVR – 2x SATA – 16x POE

Model: Uniview NVR302-16S2-P16

Features

• Support Ultra265/H.265/H.264 video formats
• 8/16-channel input
• Plug & Play with 8/16 independent PoE network interfaces
• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
• Support HDMI and VGA simultaneous output
• Up to 8 Megapixels resolution recording
• 2 SATA HDDs, up to 10TB for each HDD
• ANR technology to enhance the storage reliability when the network is disconnected
• Support cloud upgrade

Specifications

Video/Audio Input

• IP Video Input: 16-ch
• Two-way Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 160Mbps
• Outgoing Bandwidth: 64Mbps
• Remote Users: 128
• Protocols: P2P, UPnP, NTP, DHCP, PPPoE

Video/Audio Output

• HDMI/VGA Output:
  • HDMI: 4K (3840×2160@30), 1920X1080@60, 1920X1080@50, 1600X1200@60, 1280X1024@60, 1280X720@60,1024X768@60
  • VGA:1920X1080@60, 1920X1080@50, 1280X1024@60, 1280X720@60, 1024X768@60
• Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Synchronous Playback: 16-ch
• Corridor Mode Screen: 3/4/5/7/9/10/12/16

Decoding

• Decoding format: Ultra265/H.265/H.264
• Live view/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 2 x 4K@30, 4x 4MP@30, 5 x 3MP@30, 8 x 1080P@30, 16 x 720P@30

Hard Disk

• SATA: 2 SATA interfaces
• Capacity: Up to 10TB for each disk

Smart

• VCA Detection: Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Object Left Behind, Object Removed
• VCA Search: Face search, Behavior search
• Statistical Analysis: People counting

External Interface

• Network Interface: 1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
• USB Interface: Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
• Alarm In: 4-ch
• Alarm Out: 1-ch

PoE

• Interface: 16 independent 100Mbps PoE network interfaces
• Max Power:
  • Max 30W for single port
  • Max 240W in total
• Supported Standard: IEEE 802.3af/at

General

• Power Supply: 100 ~ 240 V AC
• Power Consumption: ≤10W(without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 380mm ×315mm × 53mm (14.9″ × 12.4″ ×2.1″)
• Weight (without HDD): ≤2.6kg (5.29lb)
