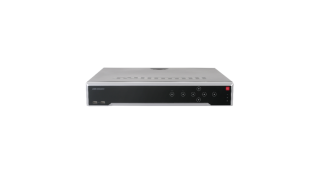

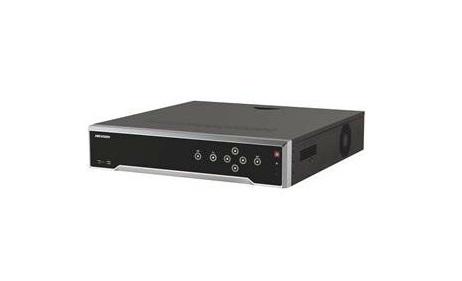

HIKVISION 32 CHANNELS NVR 12MP – 4x SATA – ALARM 16IN/4OUT

Model: Hikvision DS-7732NI-I4(B)

32 Channels 12MP NVR

Features

• Up to 32 channel IP cameras can be connected
• Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity
• Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
• 4 HDDs for continuous video recording
• Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth.

Specifications

Video And Audio

• IP Video Input: Up to 12 MP resolution
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)



Decoding

• Decoding Format: H.265/H.265+/H.264/H.264+/MPEG4
• Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous Playback: 16-ch
• Decoding Capability: 1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
• Dual-Stream Recording: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726



Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Auxiliary Interface

• Serial Interface: 1 RS-485 (half-duplex), 1 RS-232
• SATA: 4 SATA interfaces
• ESATA: N/A (1 eSATA interface is optional)
• Capacity: Up to 10 TB capacity for each HDD
• Alarm In/Out: 16/4 (16/8 is optional)
• USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ≤ 20 W (without HDD)
• Working Temperature: -10 to +55º C (+14 to +131º F)
• Working Humidity: 10 to 90 %
• Chassis: 19-inch rack-mounted 1.5U chassis
• Dimension (W × D × H): 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″) – ≤ 5 kg (11 lb.)

Certification

• FCC: Part 15 Subpart B, ANSI C63.4-2014
• CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
