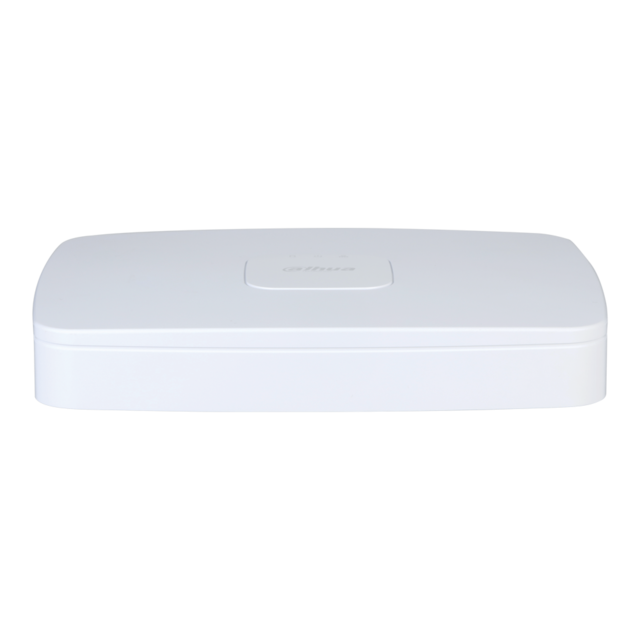

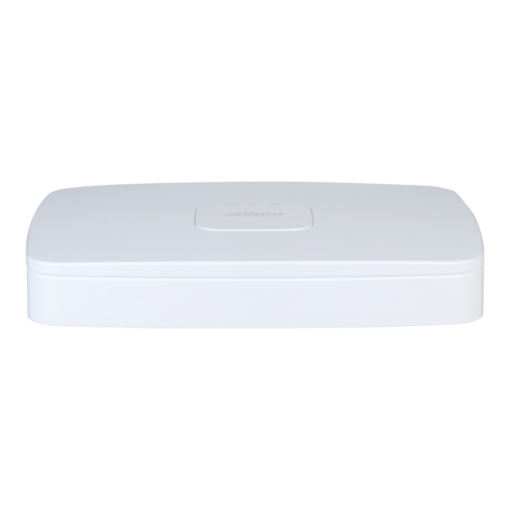

Model: Dahua NVR4108-8P-4KS2
8 Channel Smart 1U 8PoE 4K&H.265 Lite Network Video Recorder
Features
- 8/16-channel IP video access
- Smart H.265+/Smart H.264+/H.265/H.264; H.265 auto switch
- Max 80 Mbps incoming bandwidth
- Up to 8MP resolution for preview and playback
- 8-channel decoding@1080p (30 fps)
- AI by Camera: Perimeter protection; SMD Plus; people counting; heat map
- Support IPC UPnP, 8 PoE ports
Specifications
System
- Main Processor: Industrial embedded micro-processor
- Operating System: Embedded Linux
- Operation Interface: Web; local GUI
Perimeter Protection by Camera
- Performance: 8 channels
- AI Search: Search for pictures by channel, time and event type
SMD Plus by Camera
- Performance: 8 channels
- AI Search: Search by target classification (human, vehicle)
Video
- Access Channel: 8
- Network Bandwidth: 80 Mbps for access, 80 Mbps for storage and 48 Mbps for forwarding
- Resolution: 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more
- Decoding Capability: 8 channels@1080p (30 fps)
- Video Output:
- HDMI: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
- VGA: 1920 × 1080; 1280 × 1024; 1280 × 720
- Multi-screen Display: 8-channel: 1/4/8/9
- Third Party Camera Access: Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more
Compression
- Video: Smart H.265+; Smart H.264+; H.265; H.264
- Audio: PCM; G.711A; G.711U; G.726
Network
- Network Protocol: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (supports Dahua IP camera, DVR, NVS, and more); P2P
- Mobile Phone Access: Android; iOS
- Interoperability: ONVIF (profile T/S/G); CGI; SDK
- Browser: Chrome; IE9 or later; Firefox
Record Playback
- Multi-channel Playback: 8-channel: 1/4/9
- Record Mode: Manual; schedule (general; MD; alarm; MD & alarm; intelligent)
- Storage Method: Local HDD and network
- Backup: USB device
- Playback Function
- 1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
- 2. Full screen; backup (cut/file) ; partially enlarge; audio on/off
Storage
- Disk Group
- Yes
Alarm
- General Alarm: Motion detection; privacy masking; video loss; PIR alarm; IPC alarm
- Anomaly Alarm: Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly
- Intelligent Alarm: Perimeter protection; SMD; people counting; heat map
- Alarm Linkage: Record; snapshot; IPC external alarm output; buzzer; log; preset; email
External Port
- Audio Input: 1 channel, RCA connector
- Audio Output: 1 channel, RCA connector, which support voice intercom output
- HDD: 1 SATA III port, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
- USB: 2 rear USB 2.0 ports
- HDMI: 1
- VGA: 1
- Network: 1 independent 100 Mbps ethernet port
- PoE: 8 ports (IEEE802.3at/af)
General Parameter
- Power Supply: 48V/2A DC
- Power Consumption:
- NVR: < 8.3W (without HDD)
- PoE: Max 25.5W for single port, 72W in total
- Net Weight: 0.65 kg (1.43 lb) (without HDD)
- Gross Weight: 1.8 kg (3.97 lb) (without HDD)
- Product Dimensions: 270.0 mm × 206.3 mm × 45.7 mm (10.6″ × 8.1″ × 1.8″)
- Package Dimensions: 425 mm × 259 mm × 94 mm (16.7″ × 10.2″ × 3.7″)
- Operating Temperature: -10°C to +55°C (+14°F to +131°F)
- Storage Temperature: 0°C to +40°C (+32°F to +104°F)
- Operating Humidity: 10%–93% (RH)
- Storage Humidity: 30%–85% (RH)
- Operating Altitude: 3,000 m (9,843 ft)
- Certifications:
- CE: EN55032; EN55024; EN50130-4; EN60950-1
- FCC: Part 15 Subpart B; ANSI C63.4-2014
- UL: UL 60950-1
