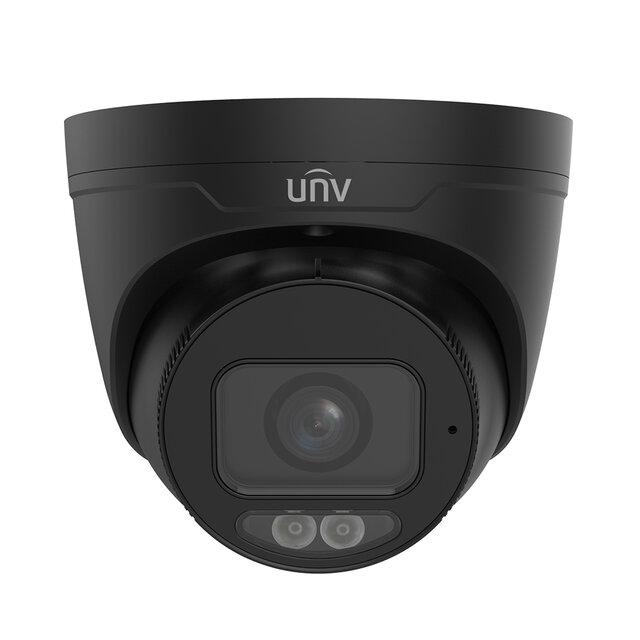

UNIVIEW PRIME COLORHUNTER 8MP TURRET 2.8MM – BLACK

Model: Uniview IPC3634SE-ADF28K-WL-I0-BLACK

4MP HD Intelligent ColorHunter Fixed Eyeball Network Camera

Features

• High quality image with 4MP, 1/1.8″CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps; 720P (1280*720), Max 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent People Flow Counting and Crowd Density Monitoring
• Colorhunter technology ensures 24-hour full-color images
• F1.0 Super aperture
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant and IP67 protection

Specifications

Camera

• Sensor: 1/1.8″, 4.0 megapixel, progressive scan, CMOS
• Minimum Illumination: Colour: 0.0005 lux (F1.0, AGC ON)
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Adjustment angle: Pan: 0° ~ 360°
• WDR: 120dB
• S/N: >56dB

Lens

• Lens: [email protected]: [email protected]
• Iris: Fixed
• Field of View (H): 108.6°
• Field of View (V): 81.3°
• Field of View (D): 135.1°

DORI

• DORI Distance:
  • Lens (mm): 2.8
  • Detect (m): 43.4
  • Observe (m): 17.4
  • Recognize (m): 8.7
  • Identify (m): 4.3

Illuminator

• LED Distance: Up to 30m (98ft)
• LEDs Number: 2
• LED On/Off Control: Auto/Manual

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
  • Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• U-code: Support
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas
• Video Stream: Triple streams


• White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital Noise Reduction: 2D/3D DNR
• Smart Illumination: Support
• Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping: N/A
• HLC: Supported
• BLC: Supported
• Defog: Digital Defog

Intelligent

• Smart intrusion prevention: Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
• Statistical Analysis: People counting, support people flow counting and crowd density monitoring

Events

• Basic Detection: Motion detection, Tampering alarm, Audio Detection
• General Function: Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

• Audio Compression: G.711
• Audio Bitrate: 64 Kbps
• Two-way audio: Supported
• Suppression: Supported
• Sampling Rate: 8KHZ

Storage

• Edge Storage: Micro SD, up to 256 GB
• Network Storage: ANR, NAS(NFS)

Network

• Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
• Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host: Up to 32 users. 2 user levels: administrator and common user
• Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client:
  • EZStation
  • EZView
  • EZLive
• Web Browser:
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+

Interface

• Audio I/O:
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O: 1/1
• RS485: N/A
• Built-in Mic: Support
• Built-in Speaker: N/A
• WIFI: N/A
• Network: 1x  RJ45 10M/100M Base-TX Ethernet
• Video Output: N/A

Certifications

• EMC:
  • CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
  • FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
• Safety:
  • CE LVD (EN 62368-1:2014+A11:2017)
  • CB (IEC 62368-1:2014)
  • UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
• Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection:
  • IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
  • IK10 (IEC 62262:2002)

General

• Power:
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max9.0W
• Power Interface: Ø 5.5mm coaxial power plug
• Dimensions (Ø x H): Φ129 x 110mm (Φ5.1” x 4.3”)
• Weight: 0.69kg (1.52lb)
• Material: Metal
• Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Surge Protection: 4KV
• Reset Button: Supported
