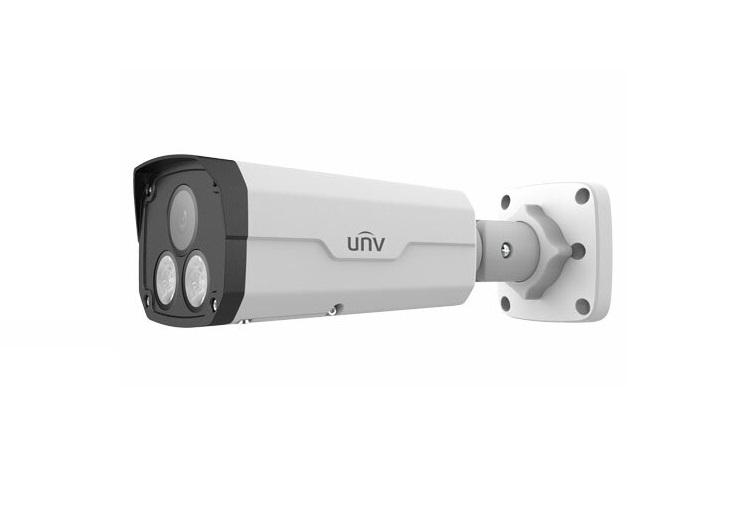

UNIVIEW PRIME COLORHUNTER 5MP BULLET 4.0MM

Model: Uniview IPC2225SE-DF40K-WL-I0

5MP HD ColorHunter Fixed Bullet Network Camera

Features

• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@ 30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Colorhunter technology ensures 24-hour full-color images
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Supports 256 G micro SD card
• IK10 vandal resistant
• IP67 protection
• Support PoE power supply

Specifications

Camera

• Sensor: 1/2.7″, 5.0 megapixel, progressive scan, CMOS
• Lens: [email protected]
• DORI Distance:
  • Lens (mm): 4.0, Detect (m):90.0, Observe (m):36.0, Recognize (m):18.0, Identify (m):9.0
  • Lens (mm): 6.0, Detect (m):135.0, Observe (m):54.0, Recognize (m):27.0, Identify (m):13.5
• Angle of View (H): 80.2°
• Angle of View (V): 43.0°
• Angle of View (O): 94.7°
• Adjustment angle: Pan: 0° ~ 360°: Tilt: 0° ~ 90°: Rotate: 0° ~ 360°
• Shutter: Auto/Manual, 1 ~ 1/100000s
• Minimum Illumination: Colour: 0.001Lux (F1.0, AGC ON)
• S/N: >56dB
• Defog: Digital Defog
• WDR: 120dB
• LEDs Number: 2
• LED Distance: Up to 30m

Video

• Video Compression: Ultra265, H.265, H.264, MJPEG
• H.264 code profile: Baseline profile, Main profile, High profile
• Frame Rate:
  • Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps;
  • Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
  • Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF (704*288), Max 30fps; CIF (352*288), Max 30fps;
• Video Bit Rate: 128 Kbps~16 Mbps
• 9:16 Corridor Mode: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI: Up to 8 areas


• White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction 2D/3D DNR
• Smart Illumination Support
• Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• Dewarping NA
• HLC Support
• BLC Support

Audio

• Audio Compression G.711
• Two-way audio Supported
• Suppression Supported
• Sampling Rate 8KHZ

Storage

• Edge Storage Micro SD, up to 256GB
• Network Storage ANR, NAS(NFS)

Network

• Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
• Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
• Client
• EZStation
• EZView
• EZLive
• Web Browser
  • Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
  • Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+

Interface

• Audio I/O
  • Input: impedance 35kΩ; amplitude 2V [p-p]
  • Output: impedance 600Ω; amplitude 2V [p-p]
• Alarm I/O 1/1
• Network 1 RJ45 10M/100M Base-TX Ethernet

Certifications

• Certifications
  • CE: EN 60950-1
  • UL: UL60950-1
  • FCC: FCC Part 15

General

• Power
  • DC 12V±25%, PoE (IEEE 802.3af)
  • Power consumption: Max 9.0W
• Dimensions (L × W × H) 246×86×85mm
• Net Weight 0.92kg (2.02lb)
• Material Metal
• Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
• surge protection 4KV
• Ingress Protection IP67
• Vandal Resistant IK10
• Reset Button NA
