HIKVISION 4MP PTZ 4x ZOOM VARIFOCAL 2.8-12MM + MIC/AU/POE

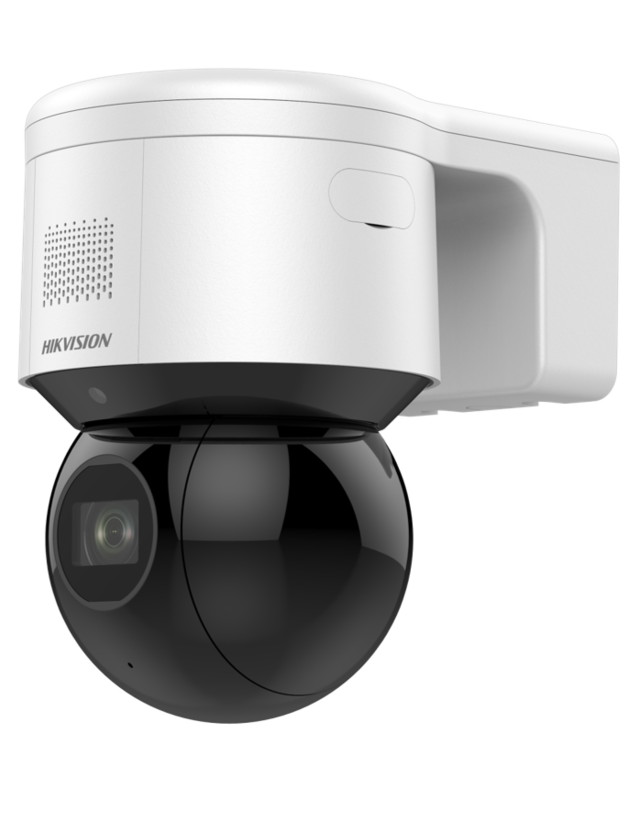

Model: Hikvision DS-2DE3A404IW-DE/W(2.8-12mm)

4 MP 4× IR Wi-Fi Network PTZ Camera

Features

• Up to 2560 × 1440 resolution
• Min. illumination:
  • Color: 0.005 Lux @(F1.5, AGC ON)
  • B/W: 0.001 Lux @(F1.5, AGC ON)
  • 0 Lux with IR
• Up to 50 m IR distance
• Up to 30 m white light distance
• Support audio visual alarm
• H.265+/H.265 video compression
• Built-in speaker and microphone for audible warning and two-way audio
• Wi-Fi
• White light flashing when alarm triggers
• Remote control on mobile phone via Hik-Connect
• Extendable on-board storage (microSD), up to 256 GB
• IP66
• Easy installation

Specifications

Camera Module

• Image Sensor: 1/2.8″ progressive scan CMOS
• Min. Illumination: Color: 0.005 Lux @(F1.5, AGC ON); B/W: 0.001 Lux @(F1.5, AGC ON); 0 Lux with IR
• White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Gain: Auto/Manual
• Shutter Time: 1 to 1/30,000 s
• Day & Night: IR Cut Filter
• Digital Zoom: 16 ×
• Privacy Mask: 24 programmable privacy masks, mask color configurable
• Focus Mode: Auto/Semi-automatic/Manual
• WDR: 120 dB WDR

Lens

• Focal Length: 2.8 to 12 mm, 4 × optical zoom
• Zoom Speed: Approx. 2 s (optical lens, wide-tele)
• Field of View:
  • Horizontal field of view: 96.7° to 31.6° (wide-tele)
  • Vertical field of view: 51.1° to 17.7° (wide-tele)
  • Diagonal field of view: 115.1° to 36.3° (wide-tele)
• Working Distance: 10 to 1500 mm (wide-tele)
• Aperture Range: F1.5 to F2.7

Illuminator

• IR Distance: Up to 50 m
• Smart IR: Yes
• White Light Distance: Up to 30 m

PTZ

• Movement Range (Pan): 0° to 350°
• Pan Speed: Configurable, from 0.1°/s to 60°/s. Preset speed: 65°/s
• Movement Range (Tilt): 0° to 90°
• Tilt Speed: Configurable, from 0.1°/s to 50°/s. Preset speed: 60°/s
• Proportional Zoom: Yes
• Presets: 300
• Patrol Scan: No
• Pattern: No
• Power-off Memory: Yes
• Park Action: Preset
• 3D Positioning: Yes
• PTZ Position Display: ON/OFF
• Preset Freezing: Yes
• Scheduled Task: Preset/Dome Reboot/Dome Adjust/Aux output

Compression Standard

• Video Compression:
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-stream: H.265/H.264/MJPEG
  • Third Stream: H.265/H.264/MJPEG
• H.264 Type: Baseline profile/main profile/high profile
• H.264+: Yes
• H.265 Type: Main profile
• H.265+: Yes
• Video Bitrate: 32 Kbps to 16384 Kbps
• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
• SVC: Yes

Smart Features

• Basic Event: Motion detection, video tampering detection, alarm input, alarm output, exception (HDD full, HDD error, illegal login, network disconnected, IP address conflict)
• Smart Event: Face detection, intrusion detection, line crossing detection, region entrance detection, region exiting detection, object removal detection, unattended baggage detection, audio exception detection
• Smart Record: ANR (Automatic Network Replenishment), dual-VCA
• Region of Interest: Main stream, sub-stream, and third stream respectively support 4 fixed areas, and dynamic face tracking.


• Max. Resolution: 2560 × 1440
• Main Stream:
• 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
• 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream:
• 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
• 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream:
• 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288)
• 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Image Enhancement: BLC, HLC, defog, 3D DNR, regional exposure, regional focus

Network

• Network Storage: Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• Protocols: IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• API: Open-ended, support ONVIF, and ISAPI, support HIKVISION SDK and Third-Party Management Platform, support Hik-Connect
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users. 3 user levels, administrator, operator and user
• Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE 8-11,Chrome 31+, Firefox 30+, Microsoft Edge 41.16299.726.0

Wi-Fi

• Wireless Standards: IEEE 802.11 b/g/n
• Frequency Range: 2.4 to 2.483GHz
• Channel Bandwidth: 20/40MHz
• Protocols: DSSS/OFDM
• Security: 64/128-bit WEP,WPA/WPA2,WPS
• Transfer Rates: 11b:11Mbps; 11g:54Mbps; 11n:150Mbps
• Wireless Range: 50 m

Interface

• Audio:
  • 1-ch audio input (line in/mic in), 2.0 to 2.4Vp-p, 1k Ohm ± 10%, 1 built-in microphone
  • 1-ch audio output (line out and built-in speaker), line level, impedance: 600Ω, 1 built-in speaker
• Built-in Speaker: 8 Ω, 2 W. Max sound pressure level: 100 dB (10 cm)
• Alarm: 1-ch alarm input/1-ch alarm output
• Network Interface: 1 RJ45 10 M/100 M Ethernet interface

General

• Power:
  • 12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
  • Max. 19 W (including max. 2.4 W for IR, 1.2 W for white light flashing)
• Working Environment: Temperature: -30°C to 60°C (-22°F to 140°F), humidity: ≤ 90%, no condensing
• Protection Level: IP66 standard, 6000V lightning protection, surge protection and voltage transient protection
• Material: ADC12 + PC
• Dimension: 179.3 mm × 120.5 mm × 182 mm (7.06″ × 4.74″ × 7.16″)
• Weight: Approx. 1.125 kg (2.48 lb.)
