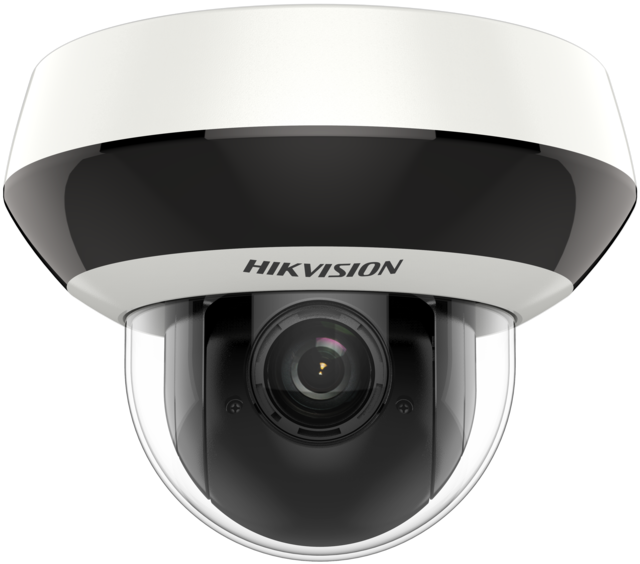

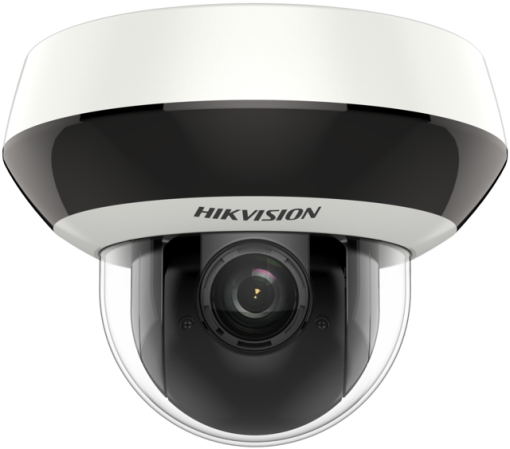

HIKVISION 4MP 4x ZOOM PTZ VARIFOCAL 2.8-12MM

Model: HikVision DS-2DE2A404IW-DE3 (2.8 – 12mm)

2-inch 4MP 4X Powered by DarkFighter IR Network Speed Dome

Hikvision DS-2DE2A404IW-DE3(2.8-12MM) 4MP 4× IR Network PTZ Camera can be widely used in multiple scenes,
such as the corridor, office, convenience store, and restaurant, etc.

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance via powered-by-DarkFighter technology
• Clear imaging against strong back lighting due to 120 dB WDR technology
• Pan and tilt ability enables camera to monitor zones of interest
• 4x optical zoom allows for closer viewing of subjects in expansive areas
• Up to 20m IR range ensures safety at night.

Specifications

Camera Module

Lens

• FOV: Horizontal field of view: 100° to 33° (Wide-Tele),Vertical field of view: 53° to 18° (Wide-Tele),Diagonal field of view: 119° to 37.5° (Wide-Tele)
• Zoom Speed: Approx. 2 s (optical lens, wide-tele)
• Working Distance: 10 mm to 1500 mm (wide-tele)
• Aperture Range: F1.6 to F2.7
• Focal Length: 2.8 mm to 12 mm, 4× optical zoom


• Image Enhancement: 3D DNR, EIS, Regional Exposure, Regional Focus
• Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
• Max. Resolution: 2560 × 1440
• Main Stream: 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 24fps (2560 × 1440), 30fps(2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
• Third Stream: 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network

• Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live View: Up to 20 channels
• User/Host: Up to 32 users,3 levels: Administrator, Operator and User
• Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+
• Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm Linkage: Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface

• Power Output: 12VDC, max. 60 mA
• Audio Input: 1-ch audio input
• Audio Output: 1-ch audio output
• Network Interface: 1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE

General

• Material: Aluminum alloy, PC, PC+ABS
• Dimensions: Φ 130.7 mm × 101.7 mm (Φ 5.15″ × 4.00″)
• Weight: Approx. 0.53 kg (1.17 lb)
• Protection Level: IP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
• Power: 12 VDC, 1.5 A (Max. 9.9 W, including max. 4.2 W for IR) PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 11.2 W, including max. 4.2 W for IR)
• Working Temperature: -20°C to 60°C (-4°F to 140°F)
• Working Humidity: ≤ 90%

Compression Standard

• H.264+: Yes
• H.265+: Yes
• H.264 Type: Baseline Profile/Main Profile/High Profile
• Video Compression: Main Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• Video Bitrate: 32 Kbps to 16384 Kbps
• Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
• SVC: Yes

Camera Module

• Image Sensor: 1/3″ progressive scan CMOS
• Min. Illumination: Color: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
• White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Gain: Auto/Manual
• Shutter Time: 50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & Night: IR cut filter
• Digital Zoom: 16×
• Privacy Mask: 24 programmable privacy masks
• Focus Mode: Auto/Semi-automatic/Manual
• WDR: 120 dB WDR

Supplement Light

• IR Distance: 20 m
• Smart IR: Yes

PTZ

• Movement Range (Pan): 0° to 355°
• Pan Speed: Configurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
• Movement Range (Tilt): From 0° to 90°
• Tilt Speed: Configurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
• Proportional Zoom: Yes
• Presets: 300
• Power-Off Memory: Yes

Smart Features

• Basic Event Detection: Motion Detection, Video Tampering Detection, Exception
• Smart Detection: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
• ROI: Main stream, sub-stream, and third stream respectively support four fixed areas.
