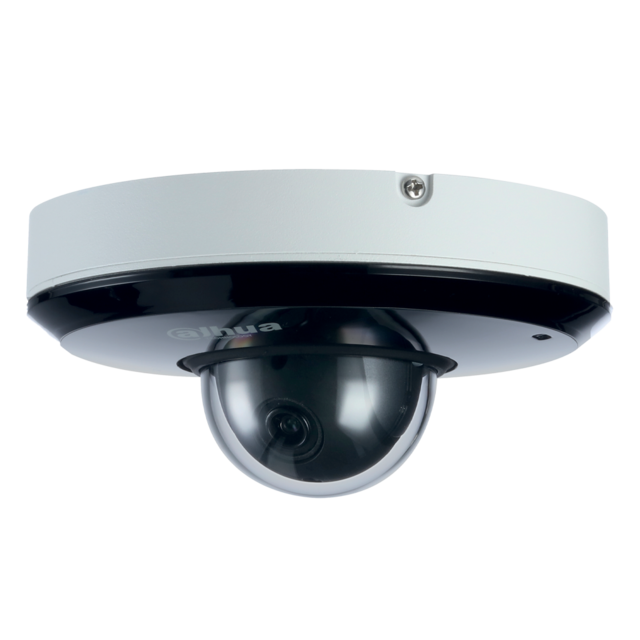

DAHUA 4MP PTZ VARIFOCAL 2.8MM~12MM

Model: Dahua DH-SD1A404XB-GNR

4MP 4x Starlight IR PTZ Network Camera

Features

• 1/2.8” 4Megapixel STARVIS™ CMOS
• Starlight technology
• Max. 25/30fps@4MP
• 4x optical zoom
• Face Detection, People Counting, Perimeter Protection
• IR distance up to 15m
• SMD Plus
• PoE
• IP66, IK08

Specifications

Camera

• Image Sensor: 1/2.8” STARVIS™ CMOS
• Effective Pixels: 2560 (H) × 1440 (V), 4 Megapixels
• RAM/ROM: 4GB/1GB
• Scanning System: Progressive
• Electronic Shutter Speed: 1/1s~1/30,000s
• Minimum Illumination: Color: [email protected]; B/W: [email protected]; [email protected] (IR on)
• S/N Ratio: More than 50dB
• IR Distance: Distance up to 15m (49.2ft)
• IR On/Off Control: Auto/Manual
• IR LEDs: 3

Lens

• Focal Length: 2.8mm~12mm
• Max. Aperture: F1.8-F2.7
• Field of View:
  • H: 31.6°–96.9°
  • V: 17.8°–51.4°
  • D: 36.4°–116.2°
• Optical Zoom: 4x
• Focus Control: Auto/Semi-Auto/Manual
• Close Focus Distance: 0.2 m–0.5 m (0.66 ft–1.64 ft)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

• Detect: 147.0 m (482.28 ft)
• Observe: 58.8 m (192.91 ft)
• Recognize: 29.4 m (96.46 ft)
• Identify: 14.7 m (48.23 ft)

PTZ

• Pan/Tilt Range:
  • Pan: 0°–355°
  • Tilt: 5°–90°
• Manual Control Speed:
  • Pan: 0.1°/s–70°/s
  • Tilt: 0.1°/s–30°/s
• Preset Speed:
  • Pan: 80°/s
  • Tilt: 40°/s
• Presets: 300
• Tour: 8 (up to 32 presets per tour)
• Speed Adjustment: Support
• Power-off Memory: Support
• Idle Motion: Preset/Tour

General Intelligence

• Event Trigger: Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
• IVS: Object Abandoned/Missing

Artificial Intelligence

• People Counting: Count people entering and exiting the area (crossing people counting); count people staying in the area (in-area people counting); display and export reports by day, week and month.
• Perimeter Protection: Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
• SMD Plus: Support
• Face Detection: Support

Video

• Compression: H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+
• Streaming Capability: 3 streams
• Resolution: 4M (2560 x 1440); 3M (2048 x 1536); 1080P (1920 x 1080); 1.3M (1280 x 960); 720P (1280 x 720); D1 (704 x 576/704 × 480); CIF (352 x 288/352 × 240)
• Frame Rate
  • Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps)
  • Sub stream 1: D1/CIF (1–25/30fps)
  • Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps)
• Bit Rate Control: Variable Bit Rate/Constant Bit Rate
• Bit Rate: H.264/H.265/MJPEG: 3 kbps–20480 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Support
• WDR: 120 dB
• HLC: Support
• White Balance: Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/Natural light/Street lamp
• Gain Control: Auto/Manual
• Noise Reduction: 2D/3D
• Motion Detection: Support
• Region of Interest (RoI): Support
• Electronic Image Stabilization: Support
• Electronic Defog: Support
• Digital Zoom: 16x
• Flip: 0°/180°
• Privacy Masking: Up to 24 areas, and up to 8 areas in the same view

Audio

Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocol: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
• Interoperability: ONVIF Profile S&G&T; CGI
• Streaming Method: Unicast/Multicast
• User/Host: 20
• Storage: FTP; Micro SD card (256G); P2P
• Browser: IE; Chrome; Firefox; Safari (no version restriction)
• Management Software:
  • SmartPSS
  • DSS
• Mobile Phone: iOS/Android

Certification

• Certifications:
  • CE: EN55032/EN55024/EN50130-4
  • FCC: Part15 subpartB, ANSI C63.4-2014
  • UL62368-1+CAN/CSA C22.2,No. 62368-1

Port

• Audio Input: 1(Line in; bare wire or built in Mic)
• Audio Output: 1

Power

• Power Supply: DC12V/1.5A±15% – PoE (802.3af)
• Power Consumption: 3W – 8.5W (IR on)

Environment

• Operating Temperature: -30°C to +60°C (-22°F to 140°F)
• Operating Humidity: ≤95%
• Protection: IK08; IP66; TVS 6000V lightning proof; surge protection

Structure

• Dimensions: Φ128.0 mm × 65.4 mm (5.04″ × 2.57″)
• Net Weight: 0.485 kg (1.06 lb)
• Gross Weight: 0.7 kg (1.54 lb)
