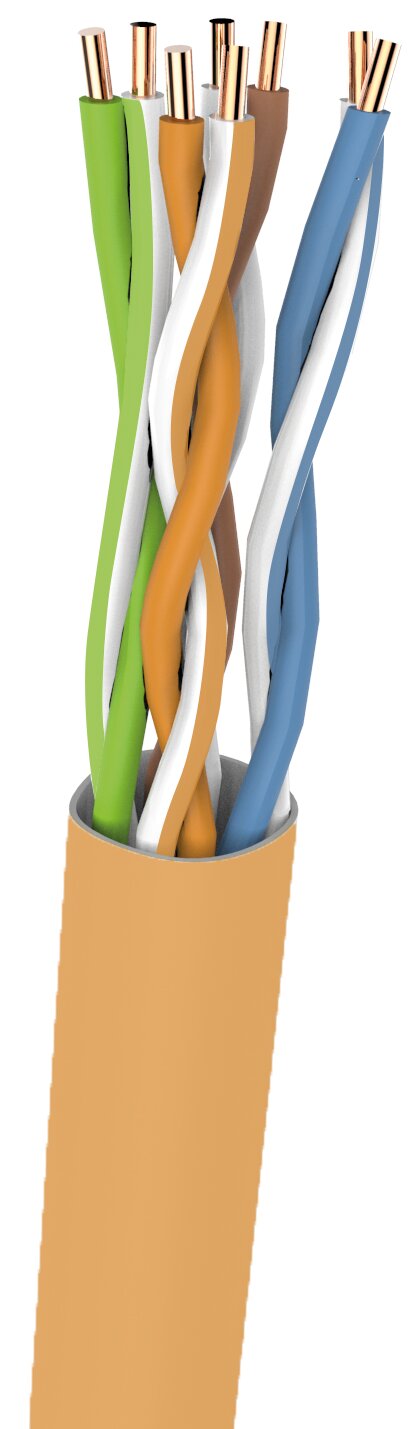

HIKVISION U/UTP CAT6 PVC SHEATH – 305M

Model: HikVision DS-1LN6-UU (305m)

U/UTP 4Pairs cable-category 6- PVC Sheath

Specifications

Category

• Category: U/UTP CAT6-4P-PVC-CM

Test Standard

• Test Standard: ISO/IEC11801, TIA-568-C.2 , YD/T1019

Conductor

• Material: SOLID-Bare Copper
• Nom.O.D.(mm): 0.565 up +0.005 down -0.005

Insulation

• Material: HDPE
• Diameter: 1.02±0.03mm

Sheath

• Thickness: 0.55±0.05 mm
• External O.D.: 6.2±0.4 mm
• Surface: Clean,Frap,Satiation
• Material: PVC(complies RoHS),CM
• Color: Multiple

Core Color

• Core Color:
  • • 1 White- Blue /Blue
    • 2 White-Orange /Orange
    • 3 White-Green /Green
    • 4 White- Brown /Brown

Packing

• Packing: Carton

Sheath Physical

• Before Aging Tensile Strength (Mpa): >13.5
• Elongation(%): >150
• Aging Period (°C×hrs): 100°C×24h×10d
• After Aging Tensile Strength(Mpa) : >12.5
• Elongation(%): >125
• Cold bend: -20±2°C×4h

Electrical

• 1.0-250.0MHz Impedance ((O): 100±15
• 1.0-250.0MHz Delay Skew (ns/100m): =45
• DC Resistance (O/100m) max: 9.38
• DC Conductor Resistance Unbalance (%) max: 5.0

Ambient temperature

• Ambient temperature: -20°C – 75°C
